Development set EVM9200

Features

AT91RM9200, Atmel Corporation
2/4 MBytes flash, 4/2M x 8
4/8 MBytes SPI flash, optional
32 MBytes SDRAM
Two serial interfaces, RS-232, DB-9
100/10 Ethernet interface, RJ-45
10 LEDs, 5 Ethernet and 5 software controlled
Connector, 96 pins for extension, optional
Connector, 70 pins for extension
USB host, USB device
Connector MMC
Reset button
JTAG header, 20 pins for debuger
Dimensions: 154 mm x 122 mm
Supply voltage: 5V ± 10% DC

Short Description

EVM9200 is suitable for evaluating systems, based on Atmel A91RM9200.

Documentation

Software

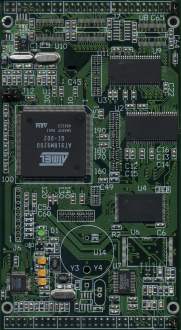

EVM9200m Development set

Features

AT91RM9200, Atmel Corporation
4 MBytes flash, 128 NAND flash
32 MBytes SDRAM
serial interface, RS-232, DB-9
USB host, USB device
100/10 Ethernet interface
1 LED, RTC, litium battery
JTAG header, 9 pins for debuger
Dimensions: 140 mm x 78 mm
Supply voltage: 5V ± 10% DC

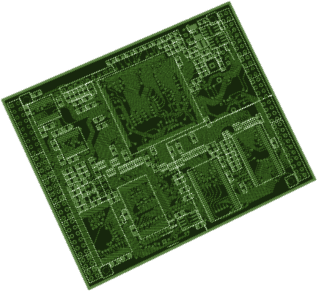

EVM9200b Development set

available via PCB files

Features

AT91RM9200, Atmel Corporation
4 MBytes flash, 128 NAND flash
32 MBytes SDRAM
two serial interface, RS-232, DB-9
USB host, USB device
MII interface
1 LED, RTC, litium battery
JTAG header, 9 pins for debuger
Dimensions: 100 mm x 78 mm
Supply voltage: 5V ± 10% DC

Documentation

EVM9200s, EVM9200b backplain

is under developing

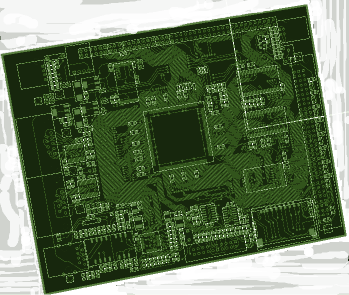

EVM9260, Development set

manufactoring time month

Features

AT91SAM9260
4 MBytes flash, 4M x 8
SPI flash, optional
32 MBytes SDRAM
Two serial interfaces, RS-232, DB-9
100/10 Ethernet interface, RJ-45
10 LEDs, 5 Ethernet and 5 software controlled
USB host, USB device
Connector MMC
Reset button
JTAG header, 20 pins for debuger
Dimensions: 154 mm x 122 mm
Supply voltage: 5V ± 10% DC

Documentation

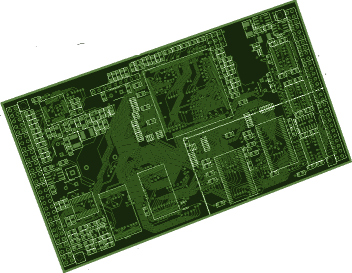

EVM9260m, Development set

PCB files for manufactoring

Features

AT91SAM9260
4 MBytes flash, 128 NAND flash
32 MBytes SDRAM
serial interface, RS-232, DB-9
100/10 Ethernet interface, RJ-45
1 LED, RTC, litium battery
Reset button
JTAG header, 9 pins for debuger
Dimensions: 140 mm x 78 mm
Supply voltage: 5V ± 10% DC

Documentation

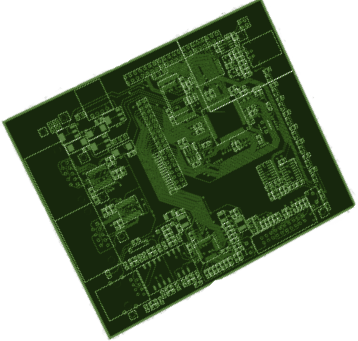

EVMSAM7X Development set

manufactoring time month

Features

AT91SAM7X
2/4 MBytes flash, 4/8 MBytes SPI flash
16 MBytes SDRAM
Two serial interfaces, RS-232, DB-9
100/10 Ethernet interface, RJ-45
10 LEDs, 5 Ethernet and 5 software controlled
USB host
Reset button
JTAG header, 20 pins for debuger
Dimensions: 154 mm x 122 mm
Supply voltage: 5V ± 10% DC

Documentation

EVMSAM7X net list

Development set EVM79525

manufactoring time month

Features

LH79525, Sharp
4 MBytes flash
16 MBytes SDRAM
Two serial interfaces, RS-232, DB-9
100/10 Ethernet interface, RJ-45
10 LEDs, 5 Ethernet and 5 software controlled
Connector, 64 pins for extension
JTAG header, 20 pins for debuger
USB device
LCD connector
Reset button
Dimensions: 154 mm x 122 mm
Supply voltage: 5V ± 10% DC

Documentation

EVM50100 net list

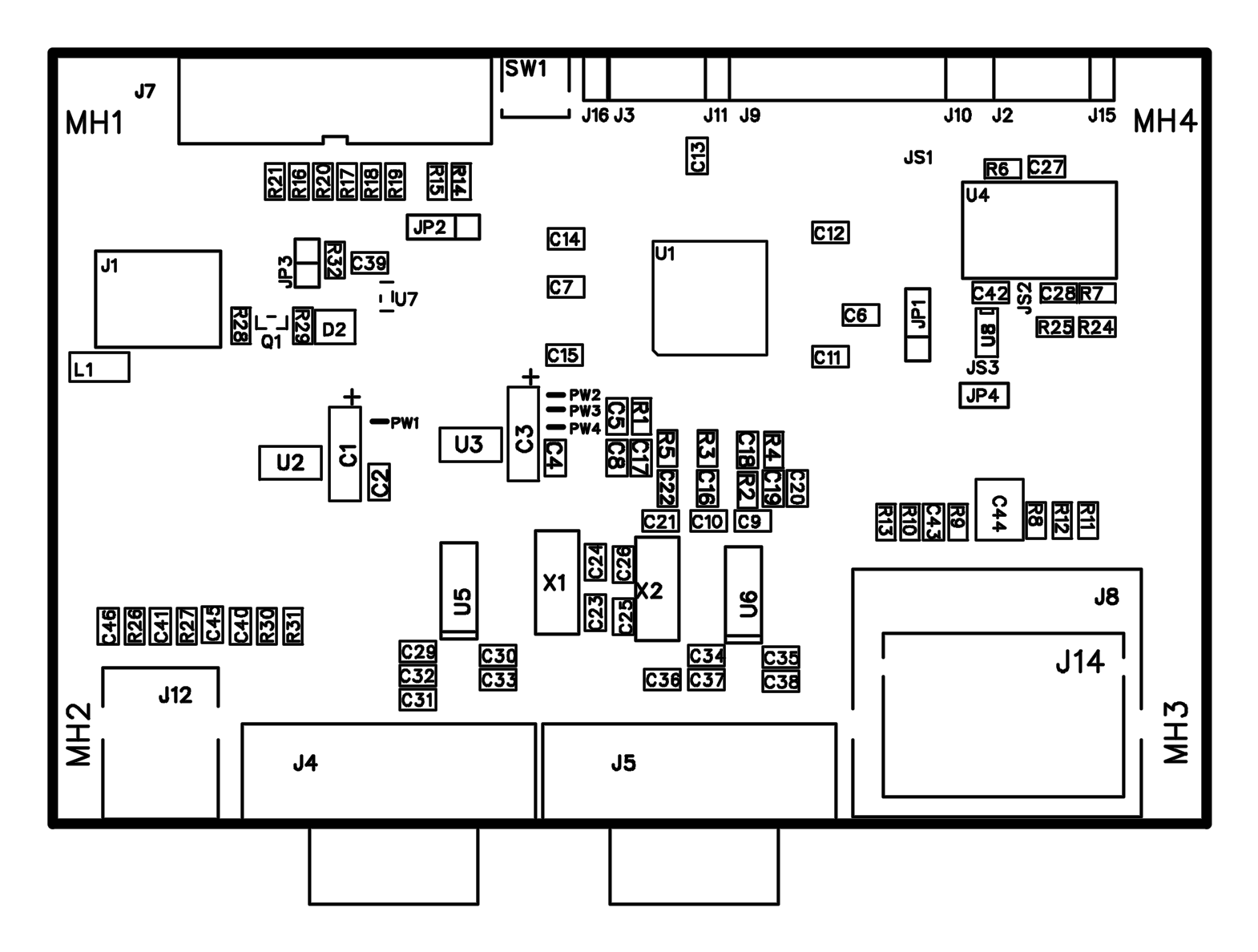

Development set EVM50100

Features

S3C4510 KS32C50100/S3C4530 Samsung
2 or 4 MBytes flash, 2M x 8 or 4M x 8
16 MBytes SDRAM, 4M x 32
50 MHz system clock
Two serial interfaces, RS-232, DB-9
100/10 Ethernet interface, RJ-45
Two connectors for interface PCB
11 LEDs, 6 Ethernet and 5 software controlled
Connector, 96 pins for extension
JTAG header, 14 pins for debuger
Dimensions: 154 mm x 102 mm
Supply voltage: 5V ± 10% DC
Consumption current: 800 mA, max

Short Description

EVM50100 is suitable for evaluating systems, based on Samsungs S3C4510 KS32C50100/S3C4530. All needed S3C4510’s pins are attached to connectors and so extension PCB can be connected to the EVM50100.

Documentation

Software

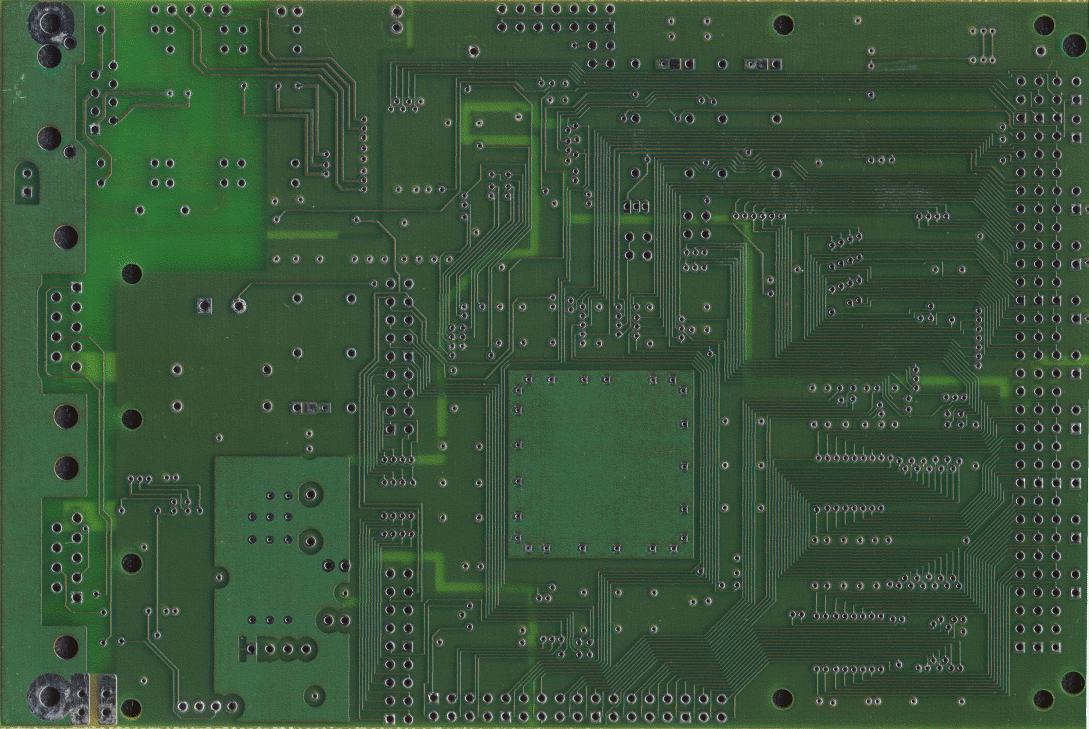

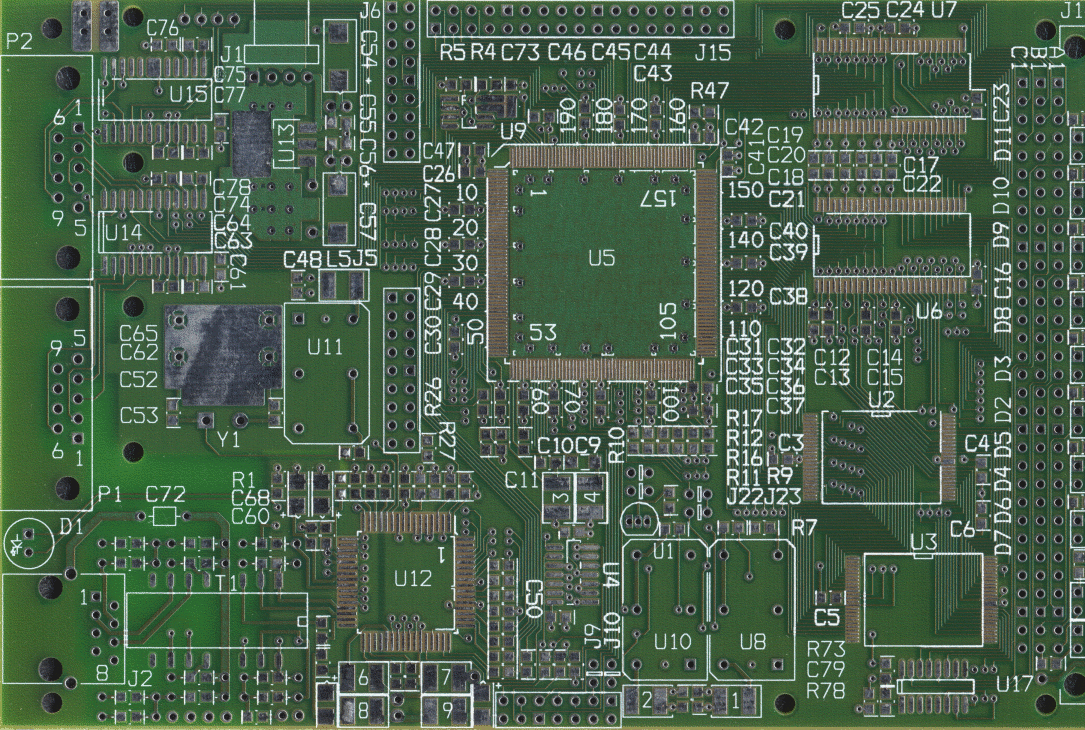

EVM50100 top side	EVM50100 bottom side

EVM50100 extension

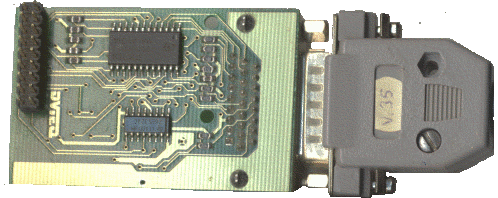

S3C4510/S3C4510 HDLC extension,
RS232/V.35 - cable depended

EVM4510b Development set

PCB files for manufactoring

Features

Samsung S3C4510/S34530
2/4 MBytes flash
16 MBytes SDRAM
50 MHz system clock
Two serial interfaces, RS-232, not standart connector
1 LED
JTAG header, 9 pin
Supply voltage: 5V ± 10% DC

Short Description

GPIO pins, MII, data bus, RS232 pins connected to two headers along short sides PCB.

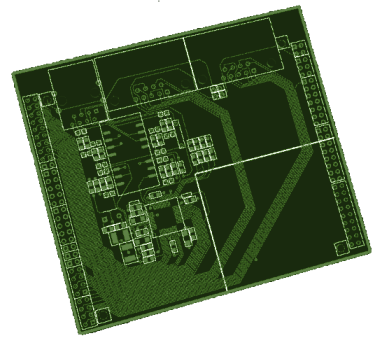

EVM4510s, EVM4510b backplain

PCB files for manufactoring

Features

RS232 DB9M, DB9F connector
Ethernet RJ45 connector
Ethernet PHY RTL8201BL

Documentation

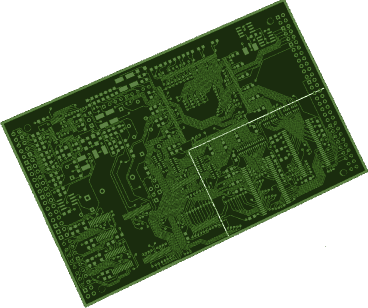

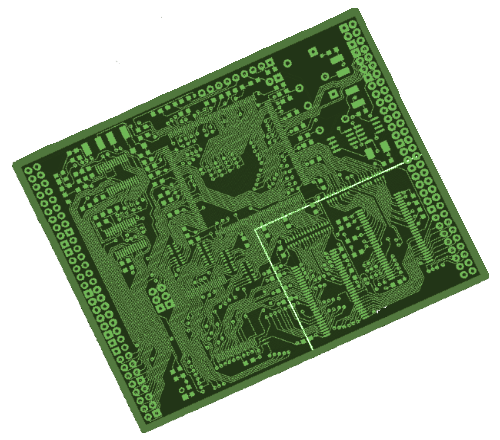

EVM4510m Development set & EVM4510n Development set

PCB files for manufactoring

Features

S34530 Samsung
4/2 MBytes flash, 128 NAND flash, 16 MBytes SDRAM
two serial interface, RS-232
100/10 Ethernet interface
1 LED, RTC, litium battery
JTAG header, 9 pins for debuger
Dimensions: EVM4510m 140mm x 78mm, EVM4510n 120 לל x 78 לל, EVM4510n under revision
Supply voltage: 5V ± 10% DC

Documentation

EVM8695 Development set

manufactoring time month

Features

KS8695 Micrel
4/2 MBytes flash, 32 MBytes SDRAM
two serial interface, RS-232
5 {five} 100/10 Ethernet interface
JTAG header, 20 pins for debuger
Dimensions: EVM8695 154mm x 122mm
Supply voltage: 5V ± 10% DC
